ESODECOR BC / R PVC or metallic

PRESENTATION

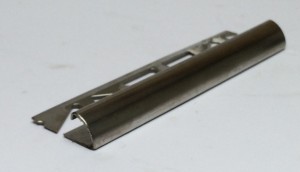

TheEsodecor BC / R ¼ round type is a wall corner edge trim, as part of a sealed installation of ceramic, earthenware, tiling, indoors or outdoors. It can also be positioned at the end of wall plinth under tiling, parquet, carpet, stone or other. It exists in PVC, Aluminum, Brass or stainless steel to be adapted according to the desired finish and environmental constraints. The perforated wing sealing, guarantees a perfect integration of the product between the raw support and the Wall cover, in accordance with the requirements of DTU 55 (sealed, glued wall coverings).

Use

• The ESODECOR BC / R profiles metallic PVC, Aluminum, Brass, Stainless steel can be used on interior or exterior wall.
• They are suitable for thicknesses of sealed or glued coverings 6.8.10 or 12.5mm thick.
• The PVC models are sensitive to direct UV radiation as well as to violent shocks.

Packaging

25m boot (10 × 2.5ml) straight bar or bendable.
LP type stainless steel or brass profiles; IP; IB are protected with a PVC protective film on the visible part to be removed after installation.
Junction elements in Y outgoing or L inward (bag of 2 pieces or more)
The re-entrant L does not exist in a PVC version.
